EQUIPMENT

Our Products

  • TORCH CUTTING MACHINE
  • FORGING EQUIPMENT
  • MULTI-PURPOSE MILLING-BORING PRESS
  • REFRACTORY PRESS
  • INTESIVE MIXER
  • AGGLOMERATION
  • COKE MAKING & BY PRODUCT AREA
  • BURNERS FOR EAF

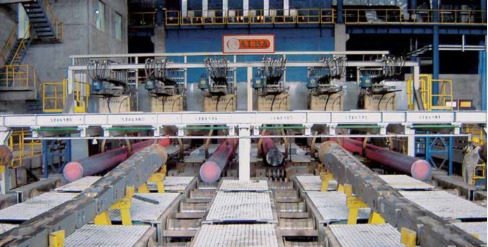

BILLET & BLOOM TORCH CUTTING MACHINES

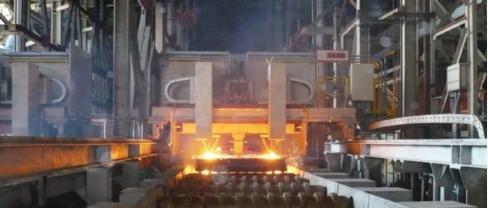

SLAB TORCH CUTTING MACHINES

A.L.B.A.’s torch cutting machine designed to be used in CC plants for cutting slabs are well known for their reliability, ruggedness and short cutting times. They can work in full automatic, semi-automatic or manual mode achieving the best performances as well as cutting results.

The machine is equipped with 2 high performance high speed water-cooled torches type ALBACUT with integrated pilot flames for normal cutting, granulating system, fluid control system, measuring system and all the other necessary equipment and safety devices. The machine moves on 4 wheels (2 loose wheels + 2 driven wheels).

The machine structure, clamping system, torch holding trolleys and torches are water cooled by a controlled flow and protected against sparks by heat shields and provided with automatic centralized greasing system for easy maintenance.

Designed and manufactured considering all the necessary conditions in order to avoid risks for personnel and plant during the use and maintenance of the machine, it will be equipped with all the required safety devices according to all international standards. The machine is based on a proven technology with high reliability and low maintenance and is specifically developed to offer high performances in heavy industrial environments.

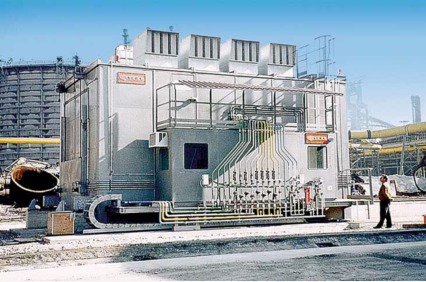

SPECIAL SCRAP TORCH CUTTING MACHINES

DEBURRING SYSTEMS

MECHANICAL DEBURRING MACHINE

FLUID CONTROL STATIONS

HEATING SYSTEMS

FOUR DIE FORGING

A Four-Die Forging Device is a universal forging tool combining the advantages of radial forging method implemented on radial forging machines (RFM) and conventional two-die forging method implemented on hydraulic forging presses.

FORGING MACHINERY WHICH CAN BE EQUIPPED WITH FDFD

  • All the types of hydraulic forging presses in capacities from 2 MN to 150 MN

  • All the types of automatic forging plants.

THE FDFD ARE AVAILABLE IN TWO OPTIONS

  • A FDFD intended to be connected to the press movable cross-beam;

  • A Four-Die Device equipped with a spring designed to lift the device top body, thus no connection to the press movable cross-beam is required.

FORGEABLE MATERIALS

  • All steel grades from carbon steels to high-alloyed steels including hardly deformable materials.

  • Special alloys – heat-resistant, high-temperature, precision, etc.

  • All ductile materials and alloys (both ferrous and non-ferrous), eg.,titanium, zirconium, aluminium.

INITIAL PARTS SHAPES

  • All the types of ingots, Solid and hollow initial stock, Rolled stock

Shapes of forged parts:

  • Circle, square, Polygonal bars, stepped bars, Hollow forged parts including stepped hollows.

BENEFITS OF THE FOUR-DIE FORGING DEVICE

  • 1.5 to 3 times higher forging output as compared to conventional two-die forging method on a press

  • 8 per cent to 15 per cent higher good metal yield

  • 2 to 2.5 times closer dimension tolerances of the forged parts and 1.5 times reduced allowances for finish surface machining which means a 40 to 50 kg metal saving per 1 ton of forged parts

  • 30 per cent to 40 per cent reduced electric energy consumption at drawing operations

  • 25 per cent to 30 per cent reduced gas consumption for metal heating due to reduced re-heating requirements

INDUSTRIAL FURNACES

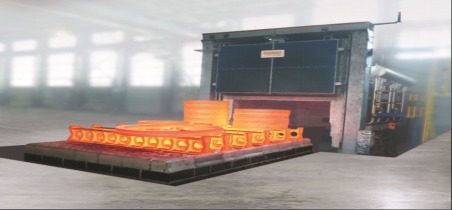

Bogie Hearth Furnace
Quenching Tanks

We develop plan, construct and manufacture industrial furnace solutions in our own manufacturing facility, according to the specific wishes of our customers. We offer advanced heat treatment solutions in numerous industries and for various product types.

Our product includes: Bogie Hearth Furnaces Chamber Furnaces Pit and Vertical Furnaces Continuous Furnaces (Pusher, Rotary Hearth, Walking Beam, Roller Hearth) Manipulators and Other Load Handling Solutions Quenching Tanks, Sprayers and Other Hardening Equipment Washing Machines

Our furnaces enable industrial companies to make better products. With the aim of avoiding costly repairs and long downtime, we believe it is very important to identify the shortcomings and predict possible defects in the furnace that may arise in the later stages of its life cycle. Depending on the challenge we are confronted with and the scope and scale of repair we can guarantee our customers: Improvement of technology and energy metrics; Reduction of deficiencies; Reduction of energy consumption; Reduction of emissions; Reduction in maintenance costs and Improving the safety and reliability of the process

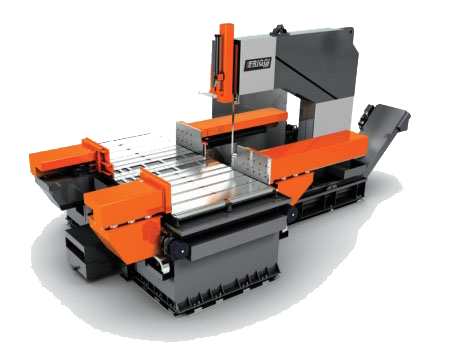

BANDSAW MACHINE

Another undisputed industry leader and a true example of niche technology and experience applied to cutting solutions. World’s leading manufacturers of band saws and, for know-how and tradition, the absolute reference for large dimension machines. Fully automatic, Semi-Automatic , Gantry Vertical & horizontal Type bandsaws designed for cutting solid bars, ingots , slab in Steel and Aluminium Material where high volume output is required. Provide leading-edge performance and extreme cutting accuracy even under the toughest conditions.

The Gantry features a fixed table and moving head designed for cutting very large, heavy material. This machine allows for vertical, horizontal, and angle cuts without having to move the material; ideal for ingots and forgings as well as large blocks of steel. Typical usage would be to cut plate horizontally from large blocks, to rough out holds to vastly reduce machining time, and more recently rough out frack blocks prior to machining.

The flexibility of the moving head and rotating blade guides, along with the 360 turntable, you can easily make up to 9 cuts with a single set-up

One of the main advantages of this vertical bandsaw is the cross-cut head with a wide throat capacity that allows cross cutting of large plates using a smaller blade than that of a tra- ditional horizontal bandsaw; therefore reducing blade costs. This can be achieved because the blade is cutting across the smallest cross-section; height rather than width.

The work table is equipped with heavy rollers that allow for easy movement and positioning of the material as required; saving operator time and costs. The AST is available in semi-automatic or fully automatic with shuttle.

MULTI-PURPOSE MILLING-BORING PRESS

Multi-purpose milling-boring processing center with mobile portal and spindle diameter 200 mm

  • Portal moving along the bed (X) 20 000 mm

  • Distance between racks 4 600 mm

  • Traverse moving (P) 2500 mm

  • Move (Y) 6000 mm

  • Total displacement of the slide and spindle (W+Z) 2 750 mm

  • Rotational speed of the spindle 1 200 rev /min

  • Drive power 95 KW

  • Weight 250 tonnes

DESIGNED FOR COMPLEX HIGH-PERFORMANCE PROCESSING ON SUCH PRODUCTION AS MILLING, BORING, DRILLING, THREAD CUTTING

HYDRAULIC PRESS FORCE 16000 KN

  • Press productivity - 5 presses per minute;

  • Nominal pressure in hydraulic system - 32 Mpa;

  • Number of simultaneously pressed products up to 4 pieces;

  • Press speed - up to 36 mm/sec;

DIMENSIONS

  • Length - 6 600 mm, width - 5 700 mm, height 8 000 mm;

  • Weight - 93 tons.

  • Number of simultaneously pressed products up to 4 pieces;

  • Press speed - up to 36 mm/sec;

DESIGNED FOR PRESSING HIGH-PRECISION REFRACTORY PRODUCTS

MIXERS CM 1500; CM 1500-01

  • CM1500 With two high-speed swirler rotation drive motor and a constant speed of the mixing plate;

  • CM1500-01 With adjustable speed of swirler and mixing plate.

MADE FOR PREPARING POWDER BASE DRY AND SEMIDRY HOMOGENEOUS MASSES BY INTENSIVE MIXING METHOD, IN PARTICULAR FOR REFRACTORY PRODUCTS

Technical parameters

Unit

CM1500

CM1500-01

Mixing plate capacity

Dm3

750

750

Recommended volume of the mixture to be filled

Dm3

450 ...750

450 ...750

The largest mass of the mixture to be filled

kg

900

900

Internal dish diameter

mm

1 500

1 500

Drive power of the plate rotation

KW

1 1

1 1

Speed of the plate

Rev/min

28

14 ...28

Rotational speed of the swirler

Rev/min

300/400

60...600

Drum drive power

KW

40/55

75

Direction of rotation of the plate (Left at the request of the customer)



right

right

Mixer weight

tons

5,7

5,7

SINTER PLANT

PRODUCTS

  • Conveyor-type continuous sinter machines

  • Conveyor-type incineration machine

  • Drum-type pelletizes

  • Drum mixers

  • Linear sinter coolers

  • Drum-type cooler

  • Bowl-type sinter coolers

  • Scrapers

  • Shuttle charge conveyors

  • Screens

  • Pallets

  • Sinter breakers

  • Conveyor-type feeders

  • Electrical equipment and automation system

PELLET PLANT

PRODUCTS

  • Drum Pelletizers

  • Disc Pelletizers

  • Equipment for green pellets transportation and screening

  • Induration machines

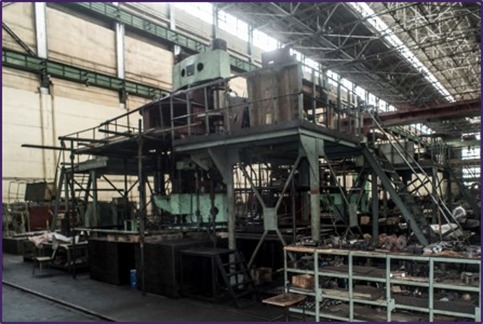

FOUR-COLUMN HYDRAULIC PRESS (D0140B) FOR NAPHTHALENA

Presses of this type are installed at enterprises of the coke-chemical industry.
Designed for squeezing liquid components from the heated naphthalene fraction in a filter. The naphthalene crystals remaining in the filter are compressed into a briquette.

HYDRAULIC SPECIAL PRESS WITH A FORCE OF 10,000 KN

Technical data D0140B
Main plunger stroke, mm 535
Pressing speed, mm/s 1.8
Briquette weight, kg 30 or 50
Maximum press productivity, kg/h 2550
Nominal pressure in the hydraulic system, mPa 32
Dimensions, mm (length/width/height) 11500, 5700, 7000
Weight, tons 62

COKE-OVEN GAS EXHAUSTERS

Coke-oven gas exhausters are used for suction of gas from coke ovens and for its conveying through pipelines to chemical products trapping equipment.

Capacity m3/min

Pressure mm. wat. st.

Power consumption kW

Mass t

450-750-900 3310-3000-2410 270-450-490 13,4
750-1270-1380 3760-3500-3380 600-900-950 17,0

COMPETITIVE ADVANTAGES AND DESIGN FEATURES

  • Coke oven gas exhausters are single-cylinder, two-stage, with one-side suction units.

  • Case is made of cast iron, with horizontal and vertical splits.

  • Suction and delivery nozzles are turned down. Two impellers fixed on a shaft, diffusers and guiding vanes form gas flow path. Labyrinth seals separate compression stages. Asynchronous motors are as a drive.

  • Coke-oven gas exhausters are provided by shaft-turning gear

  • For rotation the rotor during oiling,

  • When exhausters are in standby mode,

  • During their steaming before start up and after shutt-down. Steaming process is carried out

  • For cleaning gas flow path from tarry substances.

DRUM CRYSTALLIZERS

1. The crystallizer is designed for crystallization of organic and inorganic melts. Climatic category U3 (temperate zone 3) GOST 15150-69. min. 3000
2. Productive capacity, kg/h min. 3000
3. Unit group:
- Of the bath jacket space
As per SOUMPP 71.120-217:2009 4
As per GOST R 52630-2006 4
As per technical regulation .35 group 2; category IV
4. Crystallization surface area, m 68
5. Heat exchange surface area, m 19.23
6. Working pressure, MPa (kgf/cm ), min.
Of water in the collector 0,25 (2,5)
Of water in the bath jacket 0,25 (2,5)
Of water or steam in the jacket of end knives 0,25 (2,5)
Of water or steam in the jacket of overflow pipe 0,25 (2,5)
Of water in the roll 0,25 (2,5)
Of water in the roll atmospheric
Of naphthalene fraction in the bath atmospheric
7. Test pressure, MPa (kgf / cm):
In jackets of the bath and end knives 0,375(3,75)
In jacket of overflow pipe 0,375(3,75)
In the bath and in the roll pouring
8. Design wall temperature, Ñ 100
9. Working temperature, N
Of naphthalene fraction in the bath 80...90
Of crystalline naphthalene 35...40
Of water at the roll inlet 28...30
In the bath jacket 90...100
10. Medium characteristics:
In the bath - hazard category 4 as per GOST 12.1.007-76 non-explosive, flammable In the roll, jackets of the bath and end knives - harmless, non-flammable, non-explosive
11. Water consumption for cooling, m/hour, min. 25
12. Estimated service life, years 10
12. Estimated service life, years 10
13. Power consumption, kW
-Roll actuator: - -2,2
- Conveyor actuator -0,7
14. Rotation frequency:
Roll, n (rpm) 0,0033...0,0067 (0,2...0,4)
Conveyor, n (rpm) 0,28 (17)

DRUM CRYSTALLIZERS

They are designed for separation of well-to-filter concentrated suspensions with coarse and medium crystalline solid phase, rapidly losing fluidity, with about 50% solid phase content.

They are also used for separation of suspensions with medium abrasive solid phase basically consisting of crystalline products (ammonium sulphate, copper sulphate, copper vitriol, sodium chloride, sodium nitrate, potash, carbamide, alum, sodium sulphate), short-fibered materials (acetyl and ethyl cellulose, nitrocellulose) and amorphous products.

This type centrifuges are widely used in chemical, metallurgical, metal mining, sugar industries and other branches of industry.

The advantages of this type centrifuges are the following: design compactness, easy of service, continuity of production process of suspension separation, possibility of sediment washing, high degree of drying, high efficiency, possibility to connect to automatic or continuous-action production lines.

BURNERS FOR EAF

A.L.B.A.’s burners for EAF are designed and manufactured in order to improve scrap cutting-down (ALBASUN series) and to supply additional heat to the electric furnace (SUPERMACH series). The water-cooled ALBASUN series burners are engineered to be installed on slag removal doors or on furnace walls and to be operated by a manipulator. They have a gas/oxygen crown outlet and they produce a long and very concentrated flame which allows to improve scrap cutting-down and electric arc stability. They produce an oxidizing and external mixing combustion with thermal capacity from 3 up to 5 MW.

The water-cooled SUPERMACH series burners are engineered to be installed on furnace walls. They have a supersonic gases outlet speed in order to avoid any possible flashback and to reduce tip obstruction caused by the slag. The high thermal capacity (from 2 up to 9 MW) and the very large flame size for wide surface heating allow a high heat supply to electric furnaces.
