TRACK MAINTENANCE MACHINERIES

SRB Group offers a complete range of track machines for laying, overall repair and current maintenance of railway track. Our company is involved in production of railway track repair and maintenance equipment along with hydraulic drives and transmissions to shunting and track machines. Our product range includes

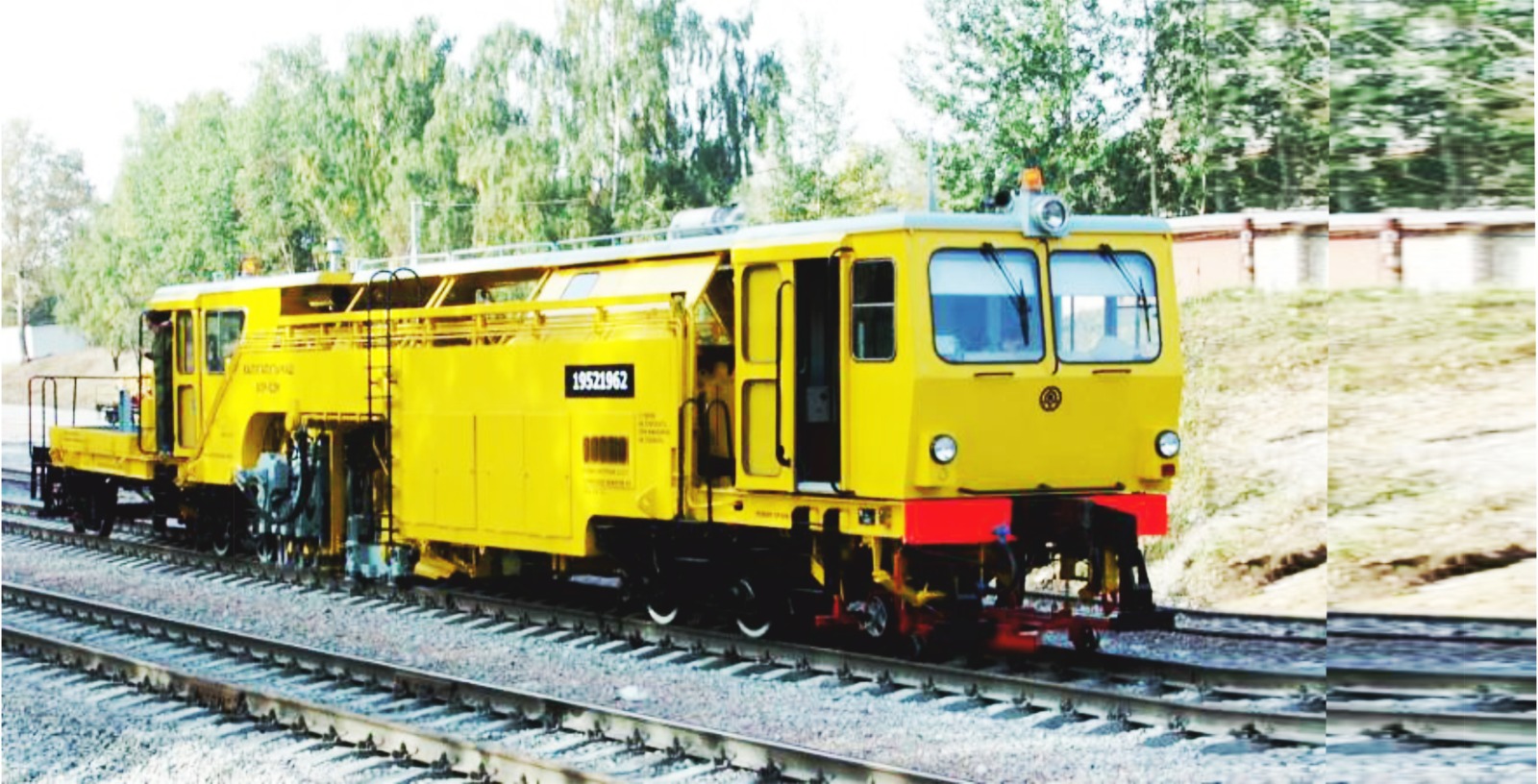

Track Tamping, Levelling and Aligning machine VPR-02М

Presently, 15 Nos. of Worksite Tamping machine and 2 Nos. of Ballast Regulating Machine are under operations with Indian Railways.

Ballast Distributing and Regulating machine RPB-01

Presently, 2 Nos. of Ballast Regulating Machine are under operations with Indian Railways and 19 nos. machines under production and will be delivered to Indian Railways till the end of the 2023.

  • Continuous Tamping, Levelling and Aligning Machine PMA-1M.
  • Dynamic Track Stabilizer DSP-S4
  • Flash Butt Welding Machine

Presently 2 Nos. Dynamic Track stabilization machine (DTS) are under operation with Indian Railways.

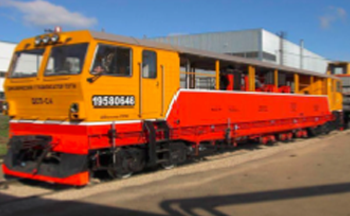

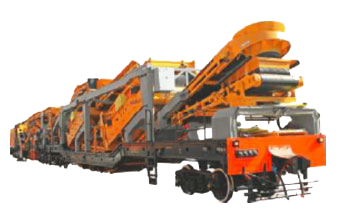

Ballast Cleaning Machines SHOM-700/1200/1400

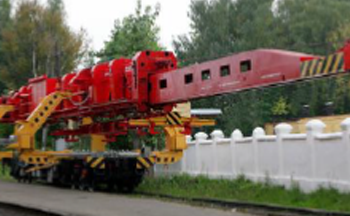

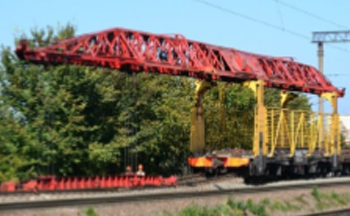

Track Laying Crane UK-25/18

Track crane UK 25/18 is designed for laying and dismantling railway tracks with rail links of weight up to 18 t, length up to 25 m, on wood and concrete sleepers during repair operations and construction of railways.

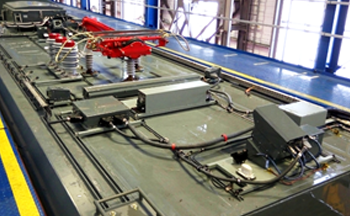

INSPECTION & MONITORING SOLUTIONS

SRB Group is in the development and production of innovative scientific and technical products for railway transportation and plays a key role in train safety providing different track monitoring, track inspection and overhead catenary inspection systems.

OUR SERVICES

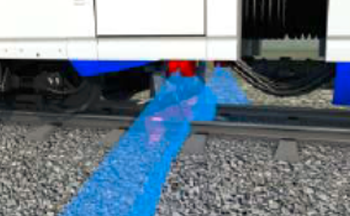

System for Track geometry measurements (MIBIS)

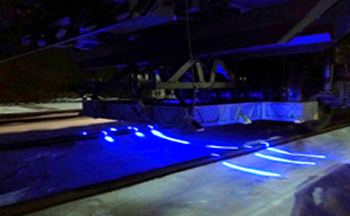

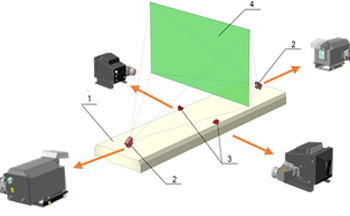

Systems for Measurements of rail profile parameters

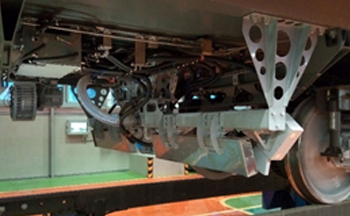

System for permanent way video monitoring

On-site Fabrication Services

On-site Fabrication Services

On-site Fabrication Services

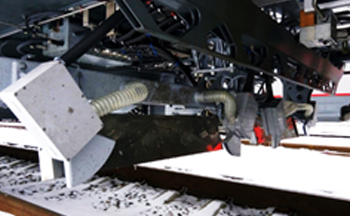

ULTRASONIC RAIL FLAW DETECTION (USFD) SYSTEM FOR TRACK

  • Self-Propelled Ultrasonic Rail Testing (SPURT) Car for track monitoring

    Features: Ultrasonic inspection on speed of up to 10 kmph with complete Registration of signals. Most effective on inactive areas and approach lines

  • Inspection up to 50km of rail track per shift;

  • forward/back movement from accumulator drive;

  • Convenient control of movement with submissions of couplant (control desk);

  • Removal/installation from the rail line during 10 min by two operators with special equipment;

  • 20 ultrasonic channels (0°, 42°, 58°, 70°) and 3 methods of NDT;

  • Patented ultrasonic inspection scheme;

  • Real-time display of defecto-gram and inspection parameters;

  • Operation modes: rail cross section with defects (Mnemonics), A-scan and B-scan;

  • marking apparent defects by spray gun during moving (automatically or manually);

  • Sensors of the track switches and bolted joints;

  • Multilanguage program interface;

  • Temperature range from -20° to +50°;

  • Cruise speed up to 25 km/h (possible 200 km of the rail track on single battery charge);

  • consist of the manual probes, sample for setting, spear parts;

  • Protective cover, windscreen, headlight for night-time.

  • Continuous USFD testing system

MACHINE TOOLS

  • CNC Bridge type Milling Machine
  • CNC Longitudinal Boring and Milling Machine
  • CNC Roll Grinding Machine
  • CNC Longitudinal Drilling and Milling Machine
  • CNC Vertical Turning Lathe
  • CNC Hydraulic Press Brake

WST

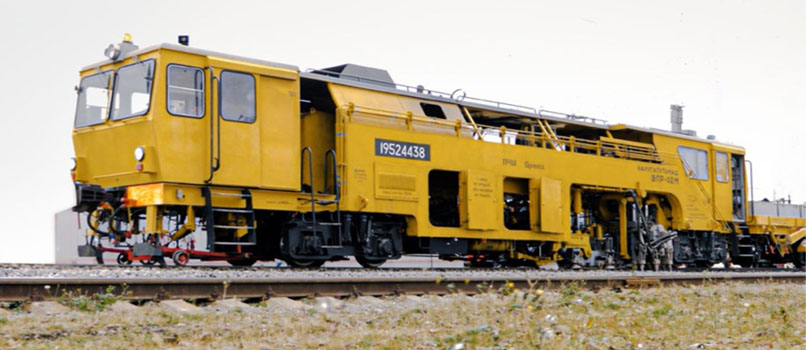

WST model VPR-02M is designed for leveling, lining and tamping operations during construction, repairs and routine maintenance of a track at all types of rails laid on different types of ballast on curved and straight sections with gradients up-to 30%.
The machine should be used in in all climate regions, at ambient temperatures between–10°С and +55°С and for non-freezing ballasts.

Leveling, Tamping and
Aligning Machine

Performance

1400 sleepers/h

SWITCH TAMPING MACHINE

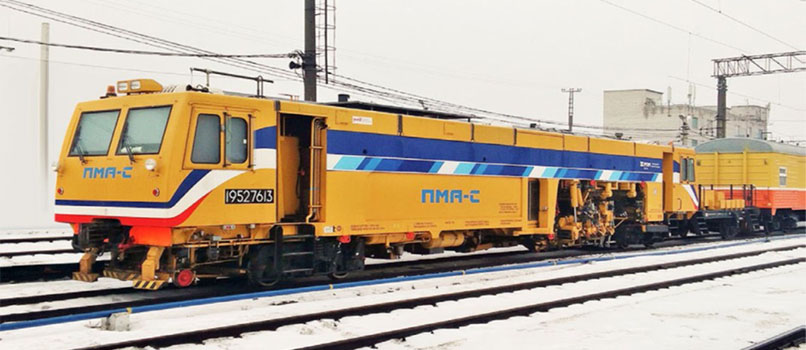

The PMA-S Switch Tamping Machine is designed for correcting the track longitudinal level, cross level and alignment. Simultaneously with these operations, the machine compacts the ballast under the sleepers, near the sleeper butts, and under the switch bearers and frogs during construction at all types of repairs, and routine maintenance of the railway tracks. A fundamentally new design of the lifting and leveling unit allows raising the parallel track synchronously with the main track, and completely eliminates the skew when clamping the parallel track panels. The clamp assemblies provide a precisely- controlled lift of the rails during switch-tamping operations.

The PMA-S has an automatic system for positioning the tamping tools when the machine moves to the next tamping operation.

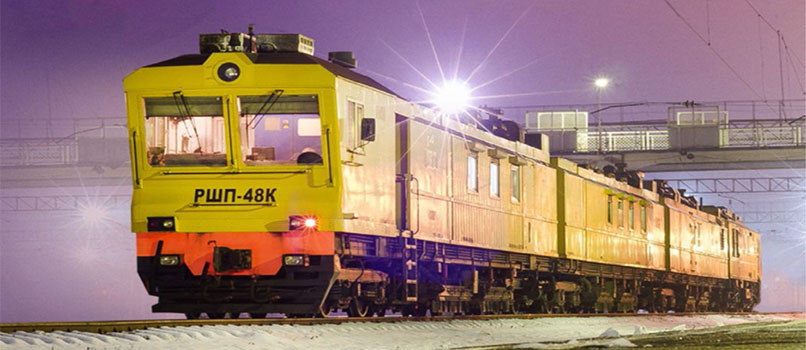

RAIL GRINDING TRAIN

The RGM-48К Rail Grinding Train is used to restore the shape of the railheads, eliminate corrugation and remove the defective metal layer from the working surfaces of all types of rails with any type of fastenings. The train consists of four units connected by tight-lock couplers: one TES-1000 diesel powered vehicle and three grinding cars.

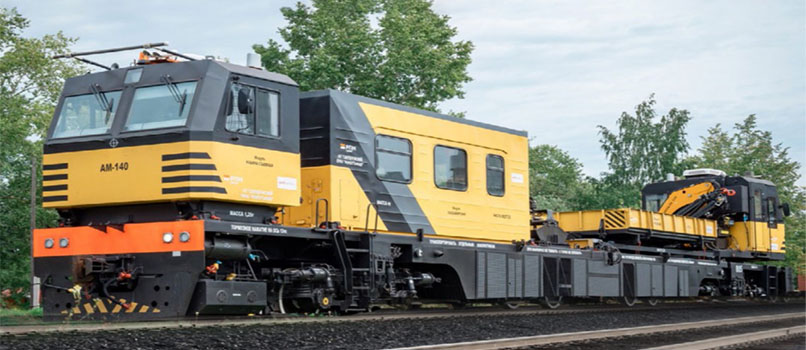

MODULAR MULTI-PURPOSE

Vehicle The AM-140 Modular Multi-Purpose Vehicle may be used for:

  • Transportation of the railway workers, tools and track equipment to the place of maintenance or repair works.
  • Day-to-day maintenance of the railway communication systems.
  • Loading and unloading operations.
  • Exploiting the functionality of the installed modules.
  • Installation, repair and emergency restoration of the overhead

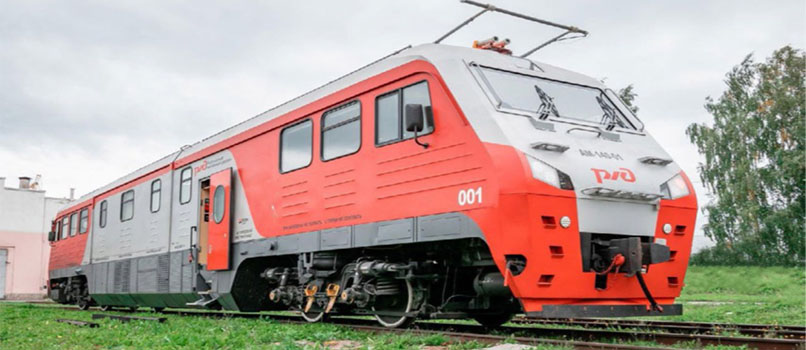

INPECTION VEHICLE

The АM-140-01 Inspection Vehicle is intended for both routine field inspections and the commissioning of new railway infrastructure. The vehicle is equipped with control and virtual equipment.

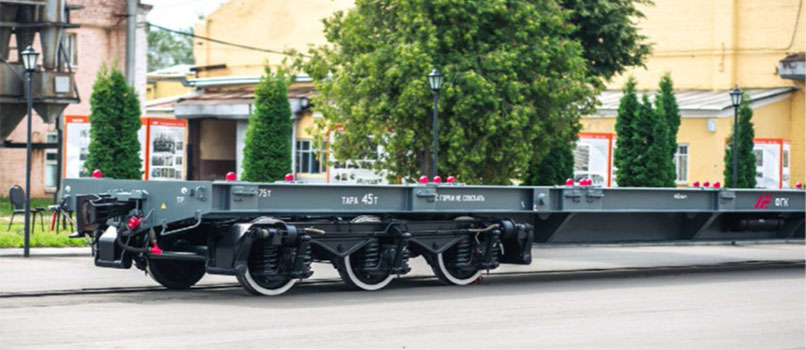

HIGH-SPEED 6-AXLE 80FT FLATCAR

The 13-6704 High-Speed 6-Axle 80ft Flatcar is designed for the transportation of large-tonnage 20-, 40-, 45-, and 53ft containers. The new 80’ flatcar has innovative three-axle bogies which allow for a uniform distribution of the load. A number of unique structural solutions increase the flatcar carrying capacity, at the same time decreasing the axle load to 20 tonnes per axle, which is why the car can carry two 40ft containers.

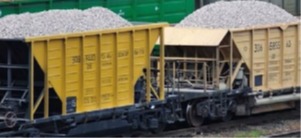

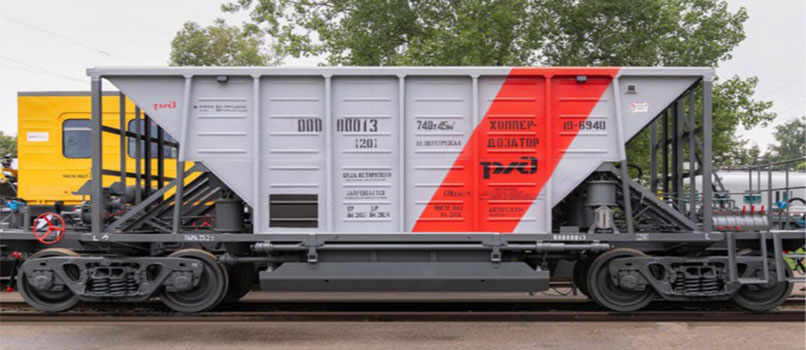

HEAVY-DUTY BALLAST HOPPER CAR

The VPM-770PG Heavy-Duty Ballast Hopper Car is used for transportation of all types of ballast. The ballast unloading is mechanized and synchronized with its profiling on the track.

The ballast is discharget in the required quantities, uniformly spread, and leveled. If necessary, this process may be interrupted. Besides, there is a possibility to limit the height of the ballast layer in the middle of the track.

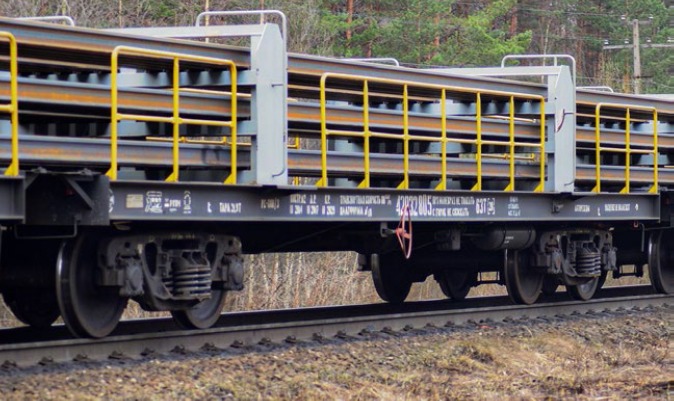

RAIL TRANSPORTATION TRAIN

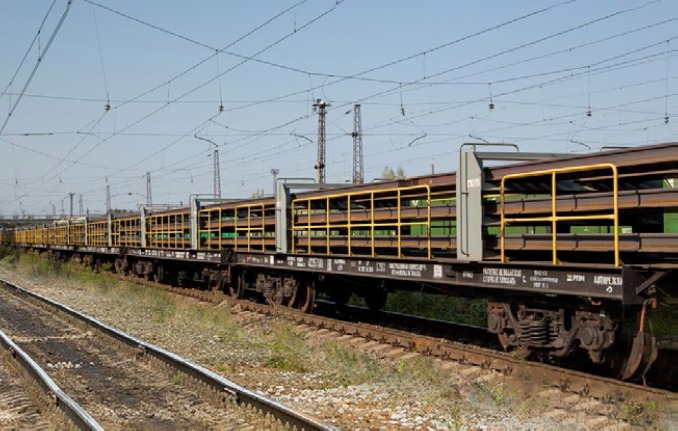

The RTT-800/3 Rail Transportation Train is a continuous welded rail train designed for loading prefabricated extra long-welded rails from technological lines of rail welding facilities, rails transportation and unloading at the worksite, loading of worn rails and their transportation to the place of their reinstallation or repair.

The train consists of 60 four-axle universal flatcars (13-4012 model) and one universal flatcar of 13-401 model.

INFRASTRUCTURE SERVICES

End-to-end solutions for railway track maintenance and repairs

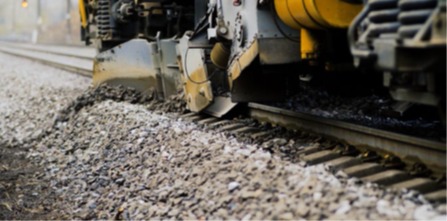

BALLAST CLEANING

Quick and efficient cleaning of ballast bed and shoulders with muck disposal on the track side or in a special train.

RAIL MILLING

An extremely fast reprofiling of worn rail heads by removing defects, which occur due to train operation. Restoring the correct rail profile increases the safety of train operations, reduces undesirable forces and extends the rail life.

Replacement of Track Panels

Removing old and placing new 25 m track panels using a track laying crane.

Track Tamping / Levelling / Lining

Smart solutions for track geometry rectification during overhauls.
